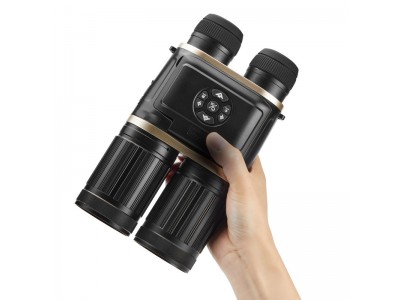

【大倍率】东帝夜视DAKINGNV-DB1920L pro数码红外夜视仪10-60倍

制造商:
DAKINGNV
型号:
生产/代理:
市场价:
面议
代理价:
面议
联系手机:
13071132826
浏览次数:
461

公司基本资料信息

商品详情

  • 产品参数:
  • 制造商:DAKINGNV
  • 型号:
  • 生产/代理:

产品介绍





产品性能

Product performance:

高清低照度图像传感器High definition low light image sensor

日夜两用全天候观测Day and night dual-use all-weather observation

一键高清录像或拍照One click high-definition video recording or photography

WIFI连接手机实现同步观看和远程遥控

WIFI connection to mobile phone for synchronized viewing and remote control

一体式独立翻折显示屏 Integrated independent folding display screen

流畅的数码倍率变焦(放大或缩小) Smooth digital zoom (zoom in or out)

北斗+GPS复合定位 Beidou+GPS composite positioning

电子罗盘/俯仰角/水平角/气压计 Electronic compass/pitch angle/horizontal angle/barometer

视频输出功能 Video output function

图像亮度调节功能 Image brightness adjustment function

眼距可调节 Adjustable eye distance

超宽带多层增透膜Ultra wideband multilayer anti reflective film

支持4G-128G范围内的micro SD卡/Supports micro SD cards in the 4G-128G range

支持多种电源方式 Supports multiple power supply methods

支持安装三脚架 Support the installation of tripods



产品参数

Product parameters:

型号model

DB1920Lpro

传感器分辨率 Sensor resolution

1920x1080

放大倍率Magnification rate

10-60倍连续变倍/10-60x continuous doubling

视场角度(度,°)(D、H、V分别是对角、水平、垂直三个方向Field of view angle (degrees, degrees) (D, H, V are diagonal, horizontal, and vertical directions respectively)

D=7.36 H=5.9 V=4.4

焦距(mm)focal length

50

眼距范围Eye distance range

65(+/-5)mm(可调节)(Adjustable)

视度调节范围(屈光度)Visual adjustment range

+5°/-5°

物镜直径Objective diameter

50mm

录像质量 Recording quality

1920x1080

照片质量 Photo quality

1920x1080

观察模式

Observation mode

昼/夜两种模式(彩色/黑白)

Two modes of day/night (color/black and white)

夜间模式挡位Night mode gear

1-4挡(N1/N2/N3/N4)

红外辅助灯波长

Infrared auxiliary light wavelength

850

屏幕亮度调节Screen brightness adjustment

支持(1-3挡)Support (1-3 gears)

TF内存卡端口TF memory card port

支持,支持4G-128G  Yes, supports 4G-128G

USB端口/USB port

支持, 支持供电功能, 存取数据

Support, support power supply function, access data

HDMI视频端口 HDMI video port

支持,micro/Support, micro

WiFi连接手机APP

WiFi connection to mobile app

支持iOS & Android ,图像视频传输/远程遥控,可一对多

Supports iOS&Android, image and video transmission/remote control, capable of one to many

WIFI连接APP有效距离

Effective distance of WIFI connection to APP

20米内

Within 20 meters

北斗定位Beidou positioning

支持support

GPS 定位/GPS positioning

支持support

电子罗盘Electronic compass

支持support

俯仰角Pitch angle

支持support

气压计(气压、高度、气温)

Barometer (pressure, altitude, temperature)

支持support

声音记录Sound recording

支持support

日期记录Date Record

支持support

一体式独立显示屏

Integrated independent display screen

支持support

独立显示屏尺寸(长X宽)Independent display screen size (length x width)

6cm X 4.5cm

电池类型Battery type

CR123A X 3,3.7V锂离子充电电池,16340型号

CR123A X 3, 3.7V lithium-ion rechargeable battery, model 16340

其他电源方式

Other power supply methods

支持,如移动电源、直流电、车载电源等

Support, such as mobile power, DC power, car power, etc

低电量指示Low battery indicator

支持support

语言选择Language selection

中文、英文Chinese, English

防尘防水等级Protection grade

生活防水Domestic waterproofing

外接三脚架External tripod

支持,1/ 4英寸三脚架接口, 皮卡丁尼

Supported, 1/4-inch tripod interface, Picardini

产品尺寸Product size

220x126X65mm

重量weight

1422g
