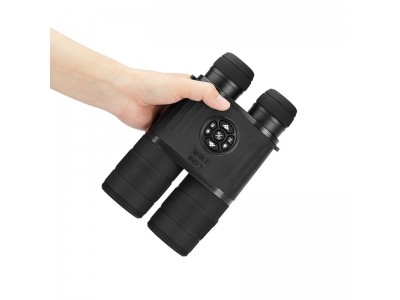

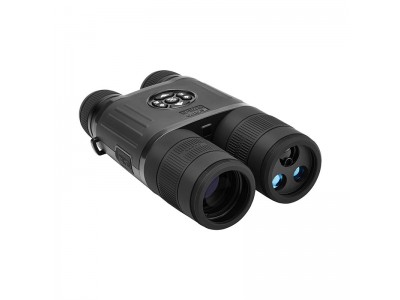

东帝夜视DB1920+数码夜视仪 拍照录像 测距1500米 多功能

产品性能

Product performance：

新一代高清低照度图像传感器The new generation of high-definition low light image sensors

日夜两用全天候观测Day and night dual-use all-weather observation

1500米远距离测距 1500 meter distance measurement

一键开启录像或拍照One click to start recording or taking photos

WIFI连接手机实现同步观看和远程遥控

WIFI connection to mobile phone for synchronized viewing and remote control

双红外波段红外辅助灯Dual infrared band infrared auxiliary lamp

流畅的数码倍率变焦（放大或缩小）Smooth digital zoom (zoom in or out)

北斗+GPS复合定位Beidou+GPS composite positioning

电子罗盘/俯仰角/气压计Electronic compass/pitch angle/barometer

视频输出功能Video output function

图像亮度调节Image brightness adjustment

眼距可调节Adjustable eye distance

超宽带多层增透膜Ultra wideband multilayer anti reflective film

支持4G-128G范围内的micro SD卡 Supports micro SD cards in the 4G-128G range

支持多种电源方式Supports multiple power supply methods

支持安装三脚架Support the installation of tripods

产品参数

Product parameters：

型号model

DB1920+

传感器分辨率Sensor resolution

1920x1080

放大倍率Magnification rate

5-30倍连续变倍5-30 times continuous doubling

视场角度（度，°）（D、H、V分别是对角、水平、垂直三个方向Field of view angle (degrees, degrees) (D, H, V are diagonal, horizontal, and vertical directions respectively)

D=7.36 H=5.9 V=4.4

焦距（mm）focal length

50

眼距范围Eye distance range

65（+/-5）mm（可调节）(Adjustable)

视度调节范围（屈光度）Visual adjustment range

+5°/-5°

物镜直径Objective diameter

50mm

录像质量 Recording quality

1920x1080

照片质量 Photo quality

1920x1080

观察模式Observation mode

昼/夜两种模式（彩色/黑白）

Two modes of day/night (color/black and white)

夜间模式挡位 Two modes of day/night (color/black and white)

1-4挡（N1/N2/N3/N4）

红外辅助灯Infrared auxiliary light

支持（2种）Support (2 types)

红外辅助灯波长

Infrared auxiliary light wavelength

850/940

屏幕亮度调节Screen brightness adjustment

支持（1-3挡）Support (1-3 gears)

测距功能Distance measurement function

支持support

测距距离Distance measurement

10-1500米/10-1500 meters

测距精度Distance measurement accuracy

±1米/± 1 meter

测距数据显示时长

Distance measurement data display duration

10秒

10 seconds

TF内存卡端口TF memory card port

支持，支持4G-128G Yes, supports 4G-128G

USB端口

USB port

支持，Type C(USB 2.0标准), 支持供电功能, 存取数据

Supported, Type C (USB 2.0 standard), supports power supply function, and accesses data

HDMI视频端口 HDMI video port

支持，micro/Support, micro

WiFi连接手机APP

WiFi connection to mobile app

支持iOS & Android ，图像视频传输/远程遥控，可一对多

Supports iOS&Android, image and video transmission/remote control, capable of one to many

WIFI连接APP有效距离

Effective distance of WIFI connection to APP

20米内

Within 20 meters

北斗定位Beidou positioning

支持support

GPS 定位/GPS positioning

支持support

电子罗盘Electronic compass

支持support

俯仰角Pitch angle

支持support

气压计（气压、高度、气温）

Barometer (pressure, altitude, temperature)

支持support

声音记录Sound recording

支持support

日期记录Date Record

支持support

电池类型

Battery type

CR123A X 3，3.7V锂离子充电电池，16340型号/CR123A X 3, 3.7V lithium-ion rechargeable battery, model 16340

其他电源方式

Other power supply methods

支持，如移动电源、直流电、车载电源等

Support, such as mobile power, DC power, car power, etc

低电量指示Low battery indicator

支持support

语言选择Language selection

中文、英文Chinese, English

防尘防水等级Protection grade

生活防水Domestic waterproofing

外接三脚架

External tripod

支持，1/ 4英寸三脚架接口, 皮卡丁尼

Supported, 1/4-inch tripod interface, Picardini

产品尺寸Product size

205X125X58mm

重量weight

820g
