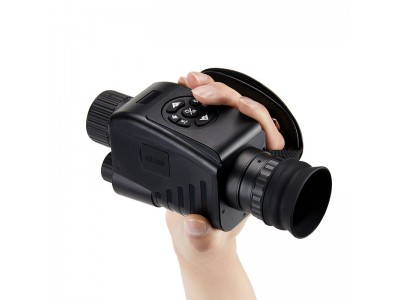

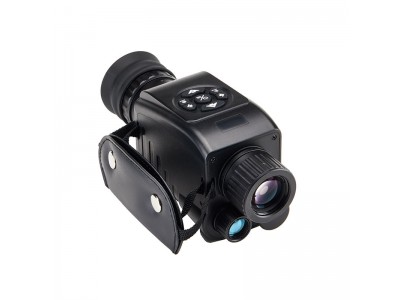

东帝夜视DM1920-3X第6代超高清单筒数码红外夜视仪望远镜

产品性能

Product performance：

低照度图像传感器Low light image sensor

日夜两用全天候观测Day and night dual-use all-weather observation

一键录像或拍照One click recording or photography

WIFI连接手机实现同步观看和远程遥控

WIFI connection to mobile phone for synchronized viewing and remote control

流畅的数码倍率变焦（放大或缩小）Smooth digital zoom (zoom in or out)

户外GPS定位Outdoor GPS positioning

图像亮度的调节Adjusting image brightness

超宽带多层增透膜 Ultra wideband multilayer anti reflective film

支持4G-128G范围内的micro SD卡   Supports micro SD cards in the 4G-128G range

支持多种电源方式 Supports multiple power supply methods

支持安装三脚架Support the installation of tripods

产品参数

Product parameters：

型号model

DM1920-3X

传感器分辨率Sensor resolution

1600x1600

放大倍率Magnification rate

15-45连续变倍 15-45 continuous doubling

视场角度（度，°）（D、H、V分别是对角、水平、垂直三个方向Field of view angle (degrees, degrees) (D, H, V are diagonal, horizontal, and vertical directions respectively)

D=10°H=8°V=5°

焦距（mm）focal length

50

视度调节范围（屈光度）Visual adjustment range

+5°/-5°

物镜焦距Objective lens focal length

50mm

照片质量Photo quality

1920x1080

录像质量Recording quality

1920x1080

观察模式

Observation mode

昼/夜两种模式（彩色/黑白）

Two modes of day/night (color/black and white)

夜间模式挡位Night mode gear

1-4挡（N1/N2/N3/N4）

屏幕亮度调节Screen brightness adjustment

有（1-3挡）yes

红外辅助距离Infrared assisted distance

1-500米（根据目标及环境不同有所差异）

1-500 meters (varies depending on target and environment)

电池种类Battery type

18650锂电池（1节）/18650 lithium battery (1 unit)

电池电压范围Battery voltage range

2.6-4.2V

其他电源方式

Other power supply methods

支持（如充电宝、直流电、车载电源等）

Support (such as power bank, DC, car power supply, etc.)

低电指示Low battery indication

有yes

TF内存卡端口TF memory card port

有（支持4G-128G）Yes (supports 4G-128G)

USB端口 USB port

有Yes（Type-C）

WiFi连接手机APP

WiFi connection to mobile app

支持iOS & Android (图像视频传输/远程遥控)可一对多Supports iOS&Android (image and video transmission/remote control) for one to many

WIFI连接APP有效距离

Effective distance of WIFI connection to APP

20米内

Within 20 meters

GPS

有Yes

电子罗盘Electronic compass

有Yes

气压计Barometer

有Yes

俯仰角&水平角Pitch angle&horizontal angle

有Yes

声音记录Sound recording

有Yes

日期记录Date Record

有Yes

语言选择Language selection

中文、英文Chinese, English

防尘防水等级Protection grade

生活防水Domestic waterproofing

外接三脚架External tripod

支持（1/4螺丝）

产品尺寸Product size

154X63X80mm

重量weight

342g
