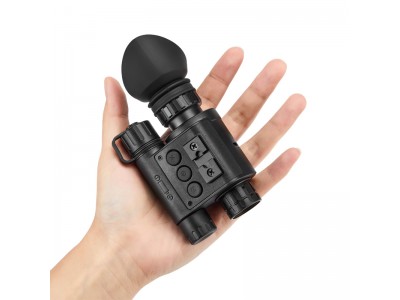

东帝夜视DAKINGNV-DG1920-1X头戴数码夜视仪可拍照录像

产品性能Product performance：

新一代高清低照度图像传感器 The new generation of high-definition low light image sensors

头戴时方向感应自动待机Automatic standby with directional sensing when wearing a headset

日夜两用全天候观测Day and night dual-use all-weather observation

一键开启录像或拍照One click to start recording or taking photos

WIFI连接手机实现同步观看和远程遥控

WIFI connection to mobile phone for synchronized viewing and remote control

图像亮度的调节 Adjusting image brightness

超宽带多层增透膜Ultra wideband multilayer anti reflective film

自带64G内存 Comes with 64GB of built-in memory

多种电源方式可选择 Multiple power supply modes to choose from

产品参数

Product parameters：

型号 model

DG1920-1X

内置显示屏尺寸Built in display screen size

0.38Inch

传感器分辨率 Sensor resolution

1920x1080

放大倍率 Magnification rate

1X

物镜直径 Objective diameter

32mm

视场角度（度，°）（D、H、V分别是对角、水平、垂直三个方向Field of view angle (degrees, degrees) (D, H, V are diagonal, horizontal, and vertical directions respectively)

D=23.4°H=20.4°V=11.5°

焦距（mm） focal length

16

视度调节范围（屈光度）Visual adjustment range

+5°/-5°

录像质量Recording quality

1920x1080

照片质量Photo quality

1920x1080

观察模式

Observation mode

昼/夜两种模式（彩色/黑白）

Two modes of day/night (color/black and white)

夜间模式挡位Night mode gear

1-4挡（N1/N2/N3/N4）

屏幕亮度调节Screen brightness adjustment

有（1-3挡）yes

红外灯辅助Infrared light assist

有yes

红外灯波长 LED wave length

850nm

电池类型 Battery type

1X18650锂电池 1X18650 lithium battery

电池待机时长

Battery standby time

5小时以上（红外关闭）2.5小时以上（红外开启N4）Over 5 hours (infrared off) Over 2.5 hours (infrared on N4)

其他电源方式

Other power supply methods

支持（如充电宝、直流电、车载电源等）

Support (such as power bank, DC, car power supply, etc.)

低电指示Low battery indication

有yes

内置存储Built in storage

64G

USB端口 USB port

有yes

WiFi连接手机APP

WiFi connection to mobile app

支持iOS & Android (图像视频传输/远程遥控)可一对多Supports iOS&Android (image and video transmission/remote control) for one to many

WIFI连接APP有效距离

Effective distance of WIFI connection to APP

20米内

Within 20 meters

声音记录 Sound recording

有yes

日期记录 Date Record

有（连接WIFI后实时同步设置）Yes (real-time synchronization settings after connecting to WIFI)

上翻待机功能 Flip up standby function

有yes

语言选择 Language selection

中文、英文 Chinese, English

防尘防水等级 Protection grade

生活防水 Domestic waterproofing

产品尺寸 Product size

93 X 64 X 47mm

外观材质 Appearance material

铝合金 aluminium alloy

重量 weight

160 g
