英国进口FlatScan2-15 薄板
便携式X光机（英国）
型号：FlatScan2-TPXi
FlatScan2-15 is a lightweight, portable, battery powered x-ray scanning system designed in co-operation with first responders and EOD teams to meet the needs of the field operative.
TPXi™便携式X光机电池驱动、重量轻、超便携。
适用于：毒品搜索分析，危险品、爆炸物探测，海关、邮政等安全检查。
TPXi优势特点：
________________________________________
n A resilient detector panel
n A portable and robust x-ray generator
n A laptop imaging station
n Batteries and chargers
n Wired and wireless communication options
n ThreatSpect software

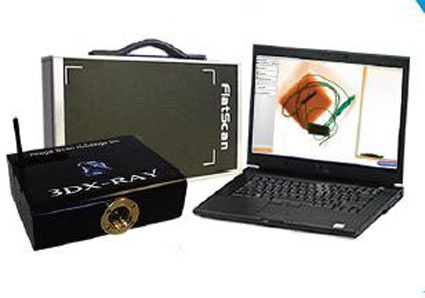

TPXi系统组成：
________________________________________
n A resilient detector panel
n A portable and robust x-ray generator
n A laptop imaging station
n Batteries and chargers
n Wired and wireless communication options
n ThreatSpect software
TPXi产品附件：
________________________________________
Tripods, repeater stations, spare batteries and chargers, soft carrying cases, wired and fibre optic cable sets
TPXi 技术规格：
________________________________________
成像器：
|
Image/ detector resolution |
512 pixels, 40 AWG 2.4 lp/mm |
|
Dynamic range |
4096 (12-bit) |
|
Image acquisition/scan speed |
7 seconds |
|
Detector dimensions |
434mm x 253mm x 86mm (external) (L x H x D) |
|
Imaging/scanning area |
297mm x 206mm |
|
Weight |
5kg |
|
Power |
Self contained rechargeable cells |
|
Communication protocols |
Wireless 802.11g / Bluetooth Wired or fibre optic options, TCP/IP ethernet |
|
Operating temperature |
-10˚C to +40˚C MIL-STD-810F 501.4 and 502.4 |
|
Bump test |
IEC 60068-2-29 :Test Eb |
|
Humidity |
0% to 95% non-condensing |
|
Ingress protection (water, dust) |
Designed to IP55 |
光源：
|

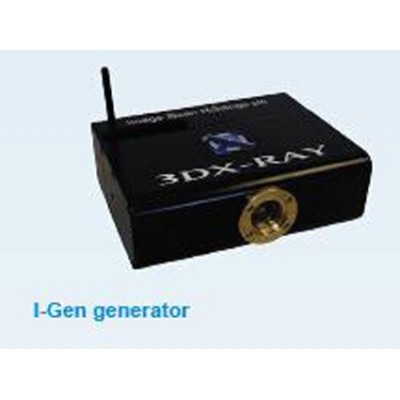

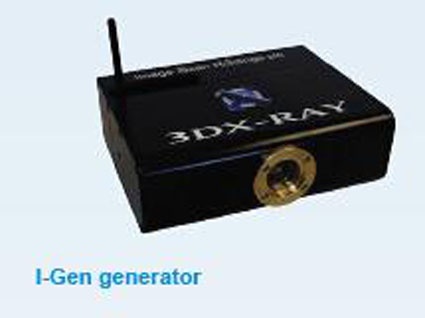

X-Ray Generator |
I-Gen |
G160 |
|
Type |
1mA constant potential 120kV |
2mA constant potential 160kV |
|
Power |
Self contained rechargeable cellsUp to 180 images on one charge (4 hour charge) Mains power option |
Self contained rechargeable cellsUp to 180 images on one charge (2 hour charge) Mains power option |
|
Penetration |
25mm guaranteed, 29mm typical |
38mm guaranteed, 40mm typical |
|
Weight (without battery) |
5.8kg |
14.4kg |
|
Size (L x W x H) |
245mm x 190mm x 80mm |
282mm x 278mm x 188mm |
通讯：
|
Wireless |
802.11g, up to 120m range (extendable with repeaters) (standard) |
|
Fibre optic |
100m, 150m, 200m (option) |
|
Ethernet |
25m, 50m (option) |
成像系统：
|
Type |
Laptop computer (ruggedised option / tablet option) |
|
Processor |
Intel Core i5-4200U, Dual Core |
|
Display |
15.6” Full High Definition (1366x768) LED Display with AntiGlare |
|
Memory |
4GB 1600MHz DDR3L (RAM) |
|
Hard Drive |
500GB Serial ATA Hard Drive |
|
Optical Drive |
DVD +/-RW Media Bay Drive |
|
Operating system |
English MS Windows |
|
Power |
Mains and battery |
|
* PC specification to be //confirm/i/ied & agreed at order stage. |
|
软件：
|
Adjustable x-ray source parameters (kV, mA & time) |
|
Standard, inverted and false colour images |
|
Rotate, Histogram, Pan, Zoom, DeepFocus™ |
|
On screen measurements and annotations (option) |
|
Materials discrimination, stitching, and 3D Emboss (option) |
|
3D-Ready (option) |
|
Multi-file format import (option) |
|
Multi-touch functionality for tablet based operation (option) |
认证：
|
Physical safety interlock plus key switch |
|
Audible & visible warning signs |
|
CE compliant |
|
NATO codification NSN 6350-99-152-8965 |
