WF390水驱动排烟机

• 产品参数：
• 制造商：美国
• 型号：
• 生产/代理：

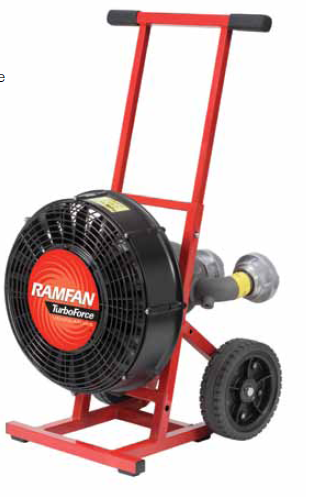

WF390水驱动排烟机（美国RAMFAN）

Water Powered Turbo Blowers

First Choice of Naval Forces Worldwide

RAMFAN Water Powered Turbo Blowers are used by Naval Forces worldwide for smoke removal,ventilation and cooling during combat operations.

16”/40cm | WF390L High Volume PPV Blower

特点

水力驱动，本质安全

7片铝铸涡轮叶片，叶轮动平横精度高

本质安全型的正压式风机

大容量排风机，适用于大型建筑

进水控制阀门，可直接控制风机排烟量

循环水出口（闭合水管道）以持续水供应

抗腐蚀涡轮，可在盐咸水质中使用

ONEstep 定位调节器，快速方便设置

32mm粉末涂层钢架及适合所有地形的充气胎

全宽度可伸缩手柄，方便直立、推拉操作

手动ON/OFF阀门开关

Water powered, intrinsically safe

7-blade polymer TurboForce™ impeller for increased shatter resistanceand enhanced PPV performance.

Outlet for water recycling (closed circuit) to conserve water supply

Wide range tilt adjustment

Powder coated steel frame

Equipped with PowerStream™ to support greater setback distances

reducing the noise level inside the building and allows the entry/exit

to keep clear of obstructions for advancing firefighters.

Lightweight, easy to maneuver

Optional mister attachment

Full-width retractable handle and heavy-duty wheels for upright,

push-pull operation

Optional Accessories: Many water connection fittings and ducting

configurations available.

技术参数：

马达：10Hp@250psi

7.5kW@1.75MPa

重      量:27kg

体      积：580/430/410 mm

压力/流量：

额定: 150psi/96gpm 0.8MPa/362lpm

最大： 250psi/162gpm 1.75MPa/612lpm

涡轮：

17,417cfm@150psi

29,610m3/hr@1.0MPa
