WF540水驱动排烟机

• 产品参数：
• 制造商：美国RAMFAN
• 型号：
• 生产/代理：

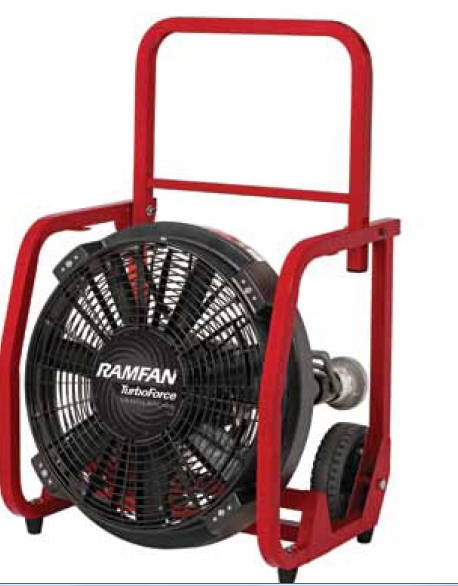

WF540水驱动排烟机（美国RAMFAN）

Water Powered Turbo Blowers

First Choice of Naval Forces Worldwide

RAMFAN Water Powered Turbo Blowers are used by Naval Forces worldwide for smoke removal,ventilation and cooling during combat operations.

21”/54cm | WF540 Solution to High Rise

Underground and Warehouse Ventilation

特点

水力驱动，本质安全

6片铝铸涡轮叶片，叶轮动平横精度高

本质安全型的正压式风机

大容量排风机，适用于大型建筑

进水控制阀门，可直接控制风机排烟量

循环水出口（闭合水管道）以持续水供应

抗腐蚀涡轮，可在盐咸水质中使用

ONEstep 定位调节器，快速方便设置

32mm粉末涂层钢架及适合所有地形的充气胎

全宽度可伸缩手柄，方便直立、推拉操作

手动ON/OFF阀门开关

Water powered, intrinsically safe

6-blade polymer TurboForce™ impeller for increased shatter

resistance and enhanced PPV performance.

Water control valve provides direct control of airflow at blower

Outlet for water recycling (closed circuit) to conserve water supply

Wide range tilt adjustment

Powder coated steel frame with full-width folding handle

Equipped with PowerStream™ to support greater setback distances

reducing the noise level inside the building and allows the entry/exit

to keep clear of obstructions for advancing firefighters.

Integral misting system

Optional Accessories: Many water connection fittings and

ducting configurations available. Call for details.

技术参数：

马达：5.2Hp@150psi

6kW@1.75MPa

重      量:34kg

体      积：650/630/530 mm

压力/流量：

额定: 0.8MPa/471lpm 116psi/124gpm

最大: 250psi/70gpm 250psi/221gpm

涡轮：

 22,443cfm@150psi

38,154m3/hr@0.8MPa
